Superior Adhesion SMT Double Splice Tape With Alignment Guide

Brand Name : KangHongJin

Model Number : M05 series

Certification : RoHS

Place of Origin : Guangdong, China

Product Name : M05 series

Material : PET

High Light : ESD SMT splice tape, Professional factory SMT splice tape, double-sided positioning splicing tape, SMT Splice Tape With Guide Alignment Designed

Contact Now

M05 series SMT Double Splice Tape with Alignment Guide Design

Superior Adhesion SMT Double Splice Tape With Alignment Guide

DESCRIPTION

M05 series splice tape is used for jointing carrier tapes in the SMT process, It is made of 2 tapes and
release paper with alignment guide design, and the tape is made by our produced patent material
with superior adhesion.

Part (reel)
Dimensions (pc)
Package
 Superior Adhesion SMT Double Splice Tape With Alignment Guide
M0508 (8mm) 4.8mm x 40mm 500pcs/box
M0512 (12mm) 7mm x 40mm 500pcs/box
M0516 (16mm) 9.5mm x 40mm 500pcs/box
M0524 (24mm) 16mm x 40mm 250pcs/box

APPLICATION ADVANTAGES

1. Double strips of transparent yellow PET

1. Increase Pick and Place machine output

tape used to join SMT carrier tapes

by 5% - 30%

2. Possible to use with or without the

2. Improves process efficiency

splice tool and clip

3. Decrease machine abrasion by reducing

3. Using imported tape in high strength

the need to reload the feeder
and high adhesive. 4. Placement guide for easy alignment
4. Wide base paper design for easy removal.

INSTRUCTIONS

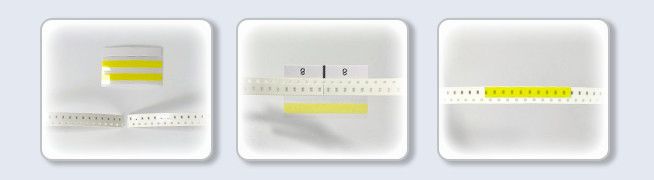

1. Use the cutting tool (MTL20/MTL30/MTL40) to accurately cut the carrier tapes.

2. Remove the release liner of the splice tape to reveal the adhesive side.

3. Align the cut carrier tapes (cover tape down) with the placement guide.

4. Place both joining carrier tapes onto the first strip of the splice tape.

5. Fold over the second strip to the underside of the carrier tape and press firmly.
6. Remove and discard the clear plastic cover and guide to complete the splice.
